Touch sensitive screens, commonly referred to as touchscreen displays, are interactive interfaces that detect and respond to touch input, allowing users to interact directly with the device. They are widely used in various applications such as smartphones, tablets, kiosks, ATM machines, industrial equipment, and more. With advancements in technology, touch sensitive screens have become an integral part of modern devices due to their convenience, versatility, and ease of use.
| Part number | YFDR0238050 |
| Size | 23.8 inch |
| Structure | G+G |
| Ratio | 16:9 |
| Driving mode | COB |
| OD area | 573.6(L)*355.6(W)± 0.2mm |
| AA area | 530(L)*299.5(W)± 0.2mm |
| VA area | 528.64(L)*298.06(W)± 0.2mm |
| Total thickness | 3.15± 0.2 mm |
| Touch points | 10 points |
| Surface hardness | 6H |
| Transmittance | > 85% |
| Haze | 3% |
| Number of channels | RX60*TX36 |
| IC control card | ILI 2510C3P3V1/EETI 81W604264 |
| Attended mode | USB |
| Working temperature | -10℃~+70℃ |
| Storage temperature | -20℃~+70℃ |
| Electrostatic discharge | Contact: ±4kv, 3 times/1 point, 1 time/1 sec, Total 3 point |
| Air: ±8kv, 3 times/1 point, 1 time/1 sec, Total 3 point | |
| Degree of linearity | +/-2mm |
| Endurance | > 300,000,000 times |
| Power dissipation | < 0.35w |
| Response time | < 10ms |
| Compatible systems | Win XP/7/8/10, Android, Linux, Mac os (single-point)QNX |
| Maximum thickness | 10mm (1-2 PT) |
| lnterface | USB 4 wire.2.0 Full speed, IIC, RS232 |
| Adapter ripple | Vpp < 50mv |
| Supply Voltage | USB 5VDC |
| Oscillation frequency | 12MHz |
| Hardware customization | Color, size, thickness, AF/AG/AR、mirror surface, anti-vision, double-sided adhesive tape on the back |
| Performance customization | Waterproof, gloves, physical indication, touch points,Anti palm touch |
Supply Capacity
1000000 Pieces/Piece Per Month, Such as 21.5-inch Touch Screen.
Packing Details

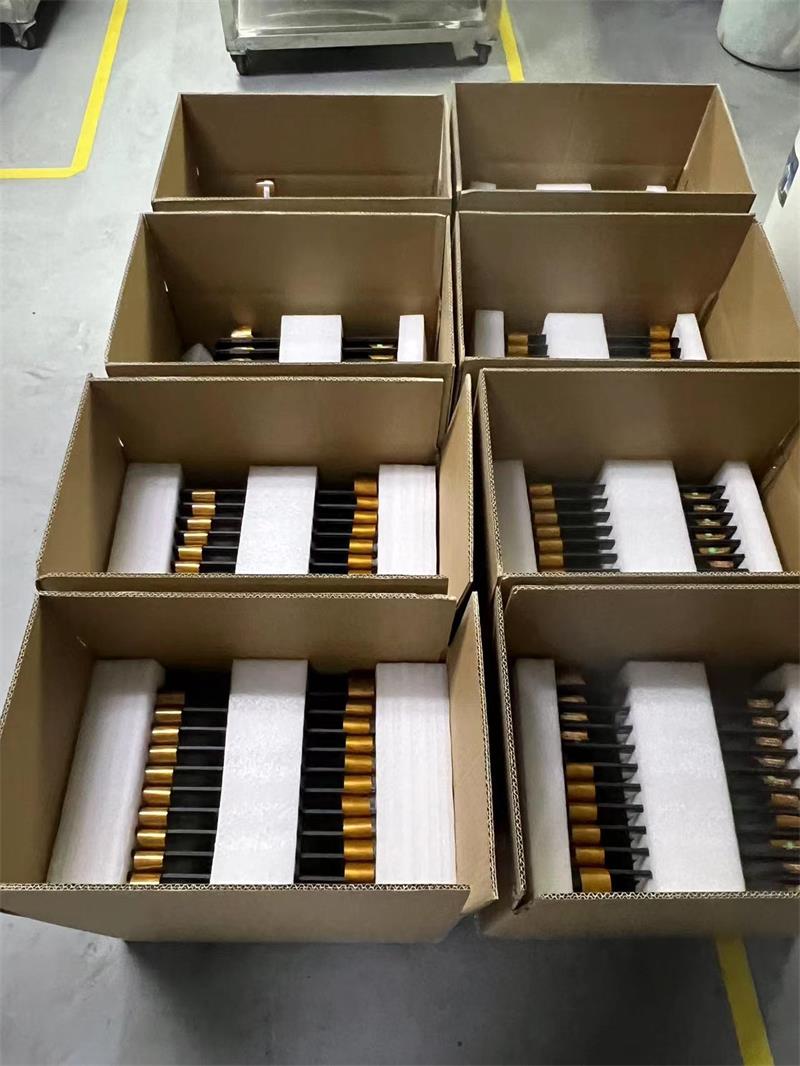

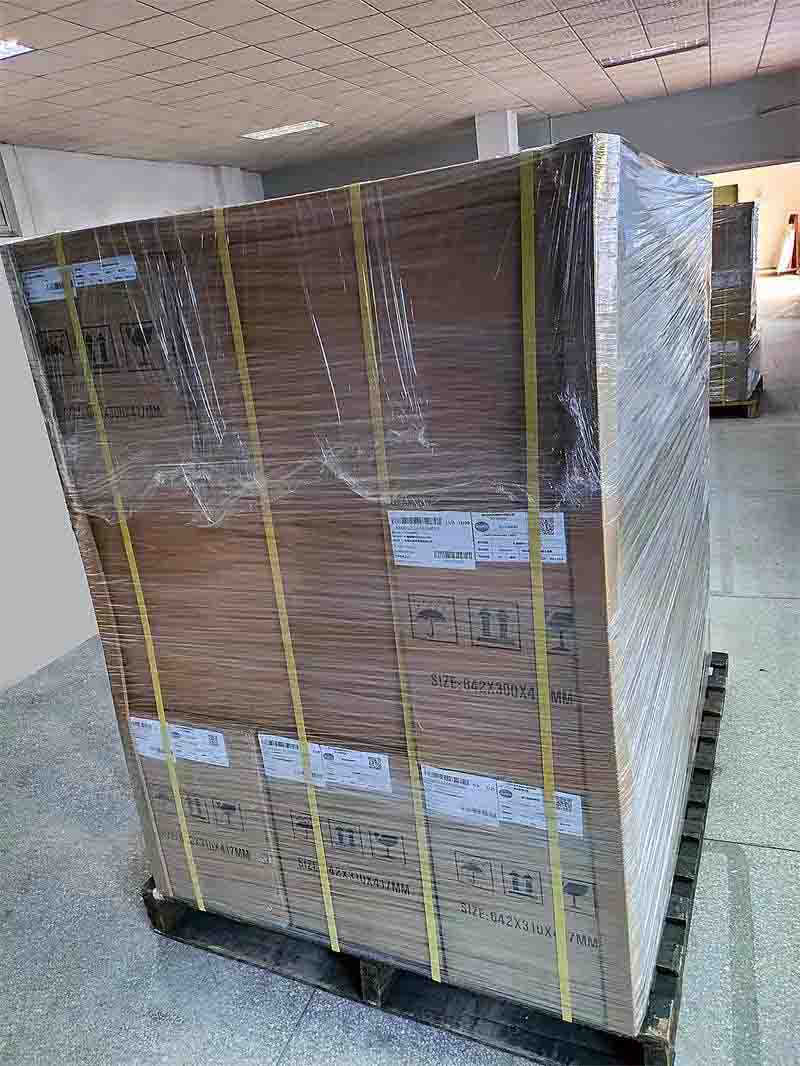

Carton or wooden box Standard packaging 1. The touch screen is packaged with foamed plastic materials; 2.Pack in cardboard or wooden boxes.
Port
Shenzhen,Guangzhou, Shanghai

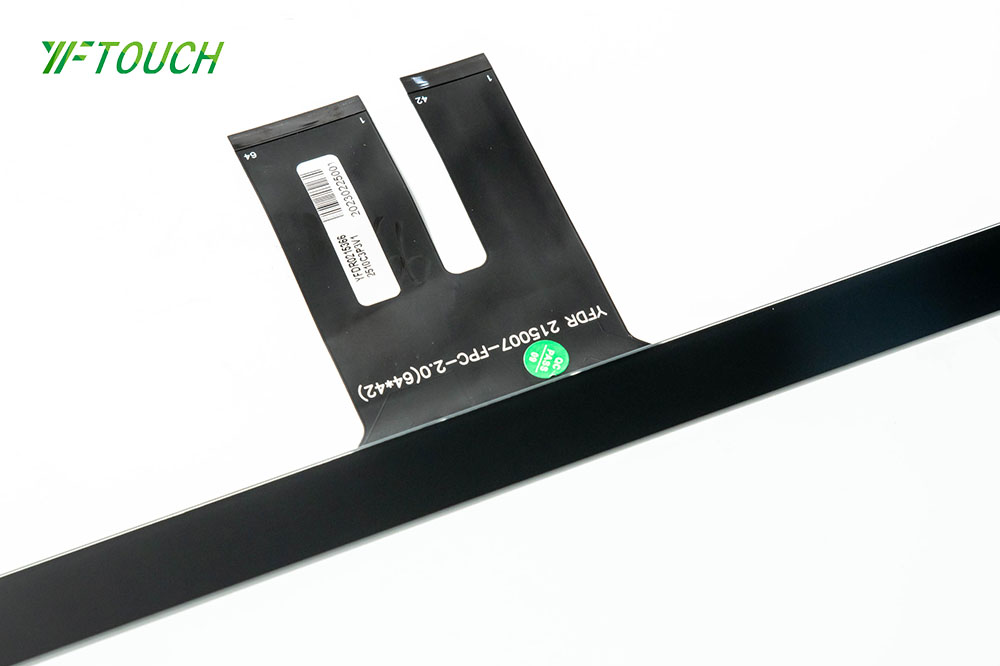

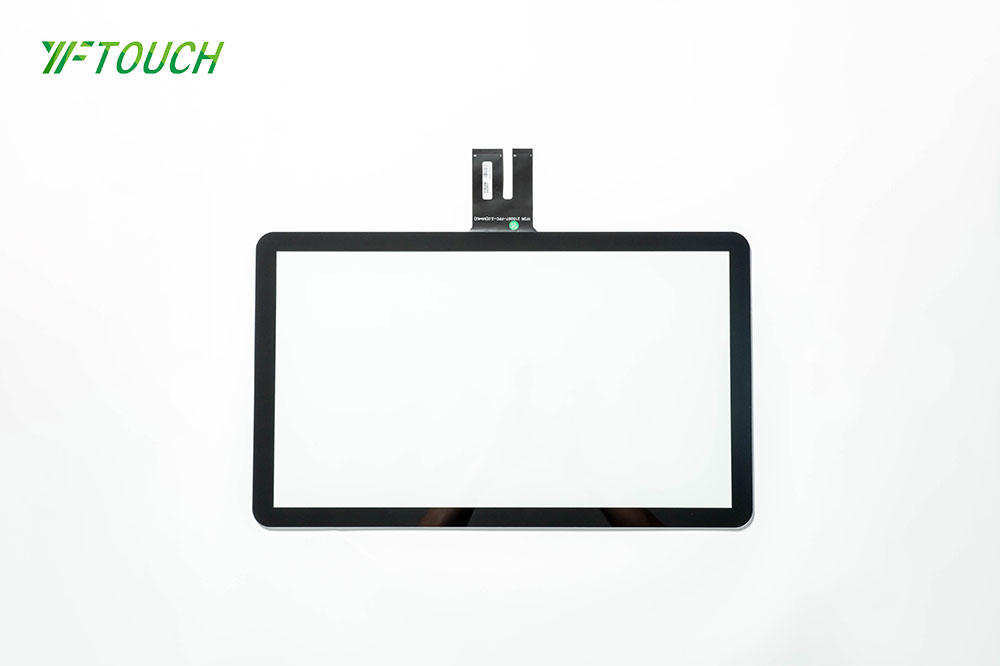

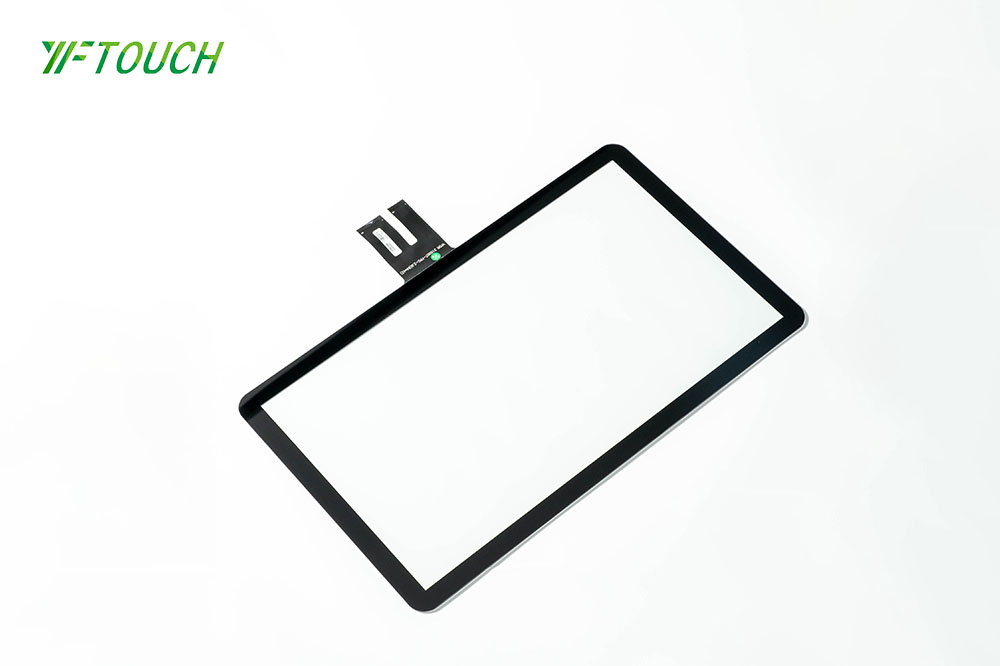

Image Example:
.jpg)
Lead Time:
| Quantity (Piece) | 1-2 | 3-500 | 501-1000 | > 1000 |
| Delivery Time(Days) | 3 | 10 | 20 | To Be Discussed |
| SIZE | Part Number | Ratio | Solution provider | OD area | AA area | R ANGLE | VA area |
| 10.1 | YFDR0101135 | 4:3 | ILITEK | 257(L)*170.5(W) | 218.5(L)*137.2(W) | R12 | 217(L)*135(W) |
| 10.4 | YFDR0104003 | 4:3 | ILITEK | 245.1(L)*192.5(W) | 214(L)*161.4(W) | R5 | 211(L)*158.4(W) |
| 12.1 | YFDR0121049 | 4:3 | ILITEK | 290(L)*228.5(W) | 250(L)*188.4(W) | R4 | 245(L)*183.5(W) |
| 13.3 | YFDR0133013 | 16:9 | ILITEK | 336.4(L)*208(W) | 297(L)*168.6(W) | R8 | 295(L)*166.6(W) |
| 15 | YFDR0150031 | 4:3 | ILITEK | 351.8(L)*275.6(W) | 307.8(L)*231.6(W) | R8 | 305.8(L)*229.6(W) |
| 15.6 | YFDR0156242 | 4:3 | ILITEK | 382.37L)*242.37(W) | 347.16(L)*196.59(W) | R7.8 | 344L)*194(W) |
| 17 | YFDR0170047 | 4:3 | ILITEK/EETI | 381.52(L)*313.94(W) | 341.92(L)*274.34(W) | R20 | 341.52(L)*273.94(W) |
| 17.3 | YFDR0173026 | 16:9 | ILITEK/EETI | 418.29(L)*251.21(W) | 383.29(L)*216.21(W) | R5 | 382.29(L)*215.21(W) |
| 18.5 | YFDR0185093 | 16:9 | ILITEK/EETI | 458.6(L)*283.6(W) | 412.3(L)*232.8(W) | R15.3 | 409.8(L)*230.4(W) |
| 19 | YFDR0190024 | 4:3 | ILITEK/EETI | 417.32(L)*342.06(W) | 380.32(L)*305.06(W) | R8 | 377.6(L)*302.3(W) |
| 21.45 | YFDR0215635 | 16:9 | ILITEK/EETI | 509.3(L)*306.3(W) | 479.85(L)*261.48(W) | R9.8 | 479.76(L)*261.48(W) |
| 21.5 | YFDR0215366 | 16:9 | ILITEK/EETI | 521(L)*310(W) | 479.84(L)*271.31(W) | R19.5 | 477.2(L)*268.7(W) |
| 21.5 | YFDR0215803 | 16:9 | ILITEK/EETI | 521(L)*310(W) | 479.84(L)*271.31(W) | R19.5 | 477.2(L)*268.7(W) |
| 22 | YFDR0220006 | 16:10 | ILITEK/EETI | 519.7(L)*342.1(W) | 476.1(L)*298.5(W) | R10 | 471.7(L)*294.1(W) |
| 23 | YFDR0230007 | 16:9 | ILITEK/EETI | 550(L)*327(W) | 512(L)*289(W) | R8 | 510(L)*287(W) |
| 23.6 | YFDR0236061 | 16:9 | ILITEK/EETI | 560.5(L)*334.5(W) | 512(L)*289(W) | R10 | 520.2(L)*293.2(W) |
| 23.8 | YFDR0238050 | 16:9 | ILITEK/EETI | 573.6(L)*355.6(W) | 530(L)*299.5(W) | R10 | 528.64(L)*298.06(W) |
| 24 | YFDR0240001 | 16:9 | ILITEK/EETI | 569.36(L)*336.89(W) | 534.36(L)*301.89(W) | R8 | 532.36(L)*299.89(W) |
| 27 | YFDR0270122 | 16:9 | ILITEK/EETI | 642.7(L)*381.2(W) | 600.4(L)*338.95(W) | R6 | 599.3(L)*337.8(W) |
| 27 | YFDR0270094 | 16:9 | ILITEK/EETI | 654.5(L)*393(W) | 600.4(L)*338.95(W) | R6 | 598.5(L)*337(W) |
| 29 | YFDR0290012 | 7:3 | ILITEK/EETI | 739.37(L)*350.42(W) | 675.97(L)*287.02(W) | R17 | 673.37(L)*284.42(W) |
| 32 | YFDR0320378 | 16:9 | ILITEK/EETI | 749.2(L)*443.65(W) | 704(L)*396(W) | R9.7 | 697.4(L)*391.85(W) |
| 32 | YFDR0320254 | 16:9 | ILITEK/EETI | 754.7(L)*449.3(W) | 704(L)*396(W) | R11 | 698.4(L)*393(W) |
| 43 | YFDR0430276 | 16:9 | ILITEK/EETI | 991.98(L)*580.22(W) | 951(L)*538.5(W) | R9.7 | 940.18(L)*528.42(W) |
| 43 | YFDR0430513 | 16:9 | ILITEK/EETI | 974.38(L)*562.62(W) | 951(L)*538.5(W) | R6 | 941.18(L)*529.42(W) |
| 49 | YFDR0490108 | 16:9 | ILITEK/EETI | 1124.58(L)*654.8(W) | 1080(L)*610(W) | R9.7 | 1072.78(L)*603(W) |
| 50 | YFDR0500004 | 16:9 | ILITEK/EETI | 1158.44(L)*679.44(W) | 1100(L)*620(W) | R9 | 1096(L)*617(W) |
| 55 | YFDR0550314 | 16:9 | ILITEK/EETI | 1246.8(L)*717.6(W) | 1215.6(L)*686.4(W) | R6 | 1209.6(L)*680.4(W) |
| 55 | YFDR0550347 | 16:9 | ILITEK/EETI | 1260.4(L)*731.2(W) | 1215.6(L)*686.4(W) | R9.7 | 1208.6(L)*679.4(W) |
| 65 | YFDR0650080 | 16:9 | ILITEK/EETI | 1499.28(L)*874.32(W) | 1440.6(L)*814.6(W) | R9.7 | 1427.48(L)*802.52(W) |
| 65 | YFDR0650051 | 16:9 | ILITEK/EETI | 1499.28(L)*874.32(W) | 1440.6(L)*814.6(W) | R9.7 | 1427.48(L)*802.52(W) |
| 75 | YFDR0750003 | 16:9 | ILITEK/EETI | 1785.1(L)*1019.1(W) | 1657(L)*935(W) | R4 | 1649.66(L)*927.94(W) |
