Glass Touch Screen 23.6Inch

2024-06-28 11:30:14

Glass Touch Screen 23.6 Inch refers to a large, interactive display panel that combines the functionality of a touchscreen with the clarity and durability of glass. This technology allows users to interact directly with the screen by touching its surface, making it ideal for applications where intuitive user interface and robust design are essential.


Glass Touch Screen 23.6 Inch

Product Introduction

The Glass Touch Screen 23.6 Inch is a sophisticated interactive display panel featuring a durable glass surface and advanced touchscreen technology. This device enables seamless user interaction through touch, providing intuitive control and navigation.


Key Features

1.High Clarity: The 23.6-inch display offers crisp, clear visuals, enhancing user experience and readability.


2.Touchscreen Functionality: Allows users to directly interact with the screen using touch gestures, such as tapping, swiping, and pinching.


3.Durable Glass Construction: Designed with robust glass material, ensuring durability and resistance to scratches and impacts.


4.Versatile Applications: Suitable for a wide range of applications including interactive kiosks, digital signage, retail displays, and educational environments.


5.User-Friendly Interface: Intuitive touch interface enhances usability, making it easy for users of all ages and backgrounds to operate.


Applications

Retail Displays: Enhance customer engagement with interactive product catalogs and information screens.


Digital Signage: Deliver dynamic content and information in public spaces with touch-enabled capabilities.


Education: Facilitate interactive learning experiences in classrooms and training environments.


Industrial Control: Use in industrial settings for monitoring and control applications where touch input is required.


Benefits

The Glass Touch Screen 23.6 Inch combines sleek design with functional durability, making it a versatile choice for various commercial and educational settings. Its responsive touchscreen and robust construction ensure reliable performance and longevity, catering to modern interactive display needs.


The Glass Touch Screen 23.6 Inch offers a blend of durability, clarity, and interactive functionality, making it an ideal solution for enhancing user engagement and efficiency across diverse applications.

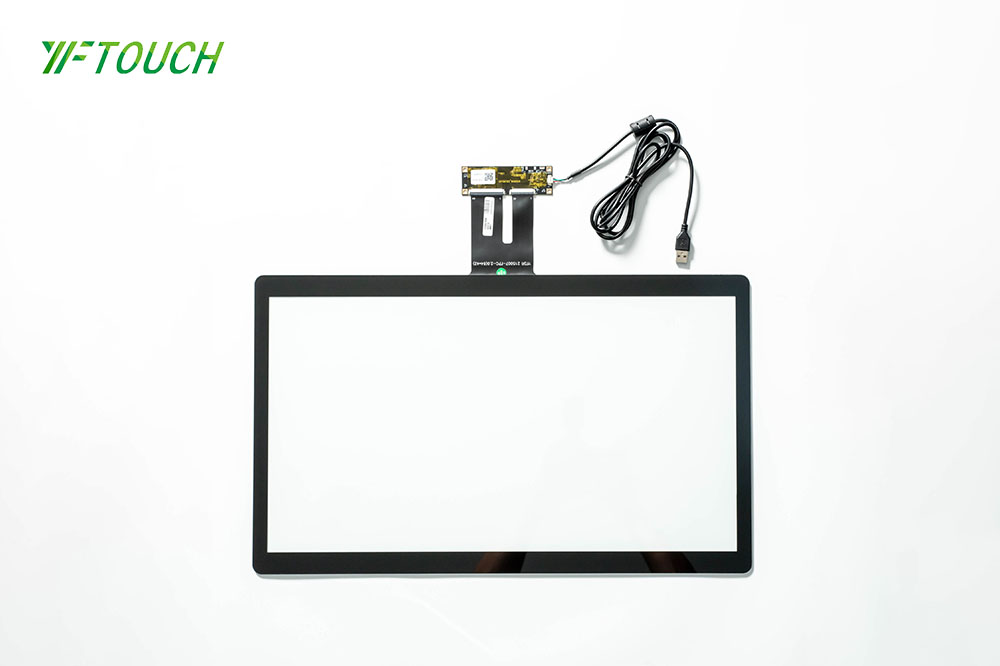

Glass Touch Screen 23.6Inch


  Product Specification
Part numberYFDR0236061
Size23.6 inch
StructureG+G
Ratio16:9
Driving modeCOB
OD area560.5(L)*334.5(W)± 0.2mm
AA area512(L)*289(W)± 0.2mm
VA area520.2(L)*293.2(W)± 0.2mm
Total thickness3.15± 0.2 mm
Touch points10 points
Surface hardness6H
Transmittance > 85%
Haze3%
Number of channelsRX60*TX36
IC control cardILI 2510C3P3V1/EETI 81W604264
Attended modeUSB
Working temperature -10℃~+70℃
Storage temperature -20℃~+70℃
Electrostatic dischargeContact: ±4kv, 3 times/1 point, 1 time/1 sec, Total 3 point
Air: ±8kv, 3 times/1 point, 1 time/1 sec, Total 3 point
Degree of linearity+/-2mm
Endurance > 300,000,000 times
Power dissipation < 0.35w
Response time < 10ms
Compatible systemsWin XP/7/8/10, Android, Linux, Mac os (single-point)QNX
Maximum thickness10mm (1-2 PT)
lnterfaceUSB 4 wire.2.0 Full speed, IIC, RS232
Adapter rippleVpp < 50mv
Supply VoltageUSB 5VDC
Oscillation frequency12MHz
Hardware customizationColor, size, thickness, AF/AG/AR、mirror surface, anti-vision, double-sided adhesive tape on the back
Performance customizationWaterproof, gloves, physical indication, touch points,Anti palm touch
