How does Capacitive Touch Screen achieve light transmission?

2023-08-14 13:55:17

Capacitive Touch Screens are widely used in modern electronic devices due to their superior touch sensitivity and sleek design. The implementation of transparency in capacitive Touch Screens is a crucial factor in ensuring optimal display quality. Achieving transparency involves a combination of advanced materials, manufacturing techniques, and engineering considerations.


At the heart of a capacitive touch screen's transparency is the innovative use of transparent conductive materials. Indium Tin Oxide (ITO) is the most commonly employed material for this purpose. ITO is a transparent conductor that allows electric current to pass through while also letting light transmit with minimal distortion. It is deposited in thin layers onto the surface of the touch screen, forming a grid of microscopically fine lines that create a capacitive field.


The touch screen's transparency is further enhanced by the careful engineering of the layers above the conductive grid. A protective cover, often made of tempered glass or high-quality polycarbonate, is added to shield the display and touch-sensitive layers. This cover is specially treated to minimize reflection and glare, ensuring that the screen remains highly readable even in bright environments.


In addition to the materials used, the manufacturing process plays a vital role in achieving optimal transparency. Precision techniques, such as photolithography and chemical etching, are employed to create the microscopic patterns that define the touch-sensitive areas. These processes ensure that the conductive grid is evenly distributed and accurately aligned, allowing for consistent touch responsiveness across the screen.


Moreover, the design of the capacitive touch screen takes into account factors such as the spacing between the conductive lines and the thickness of the layers. These factors impact the touch screen's ability to accurately detect and locate touch points, while still allowing light to pass through without distortion.

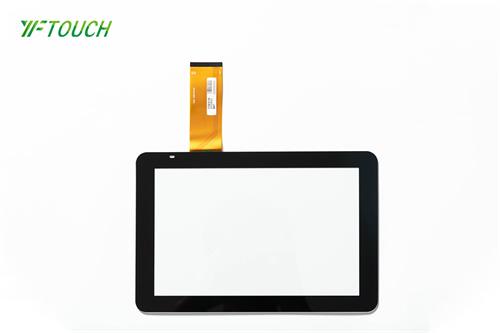

capacitivetouchscreen1


In conclusion, the transparency of capacitive touch screens is a result of a meticulous combination of transparent conductive materials, precision manufacturing techniques, and thoughtful engineering design. This harmonious blend enables the capacitive touch screen to maintain its visual clarity, making it an indispensable component in modern electronic devices that prioritize both form and function.
