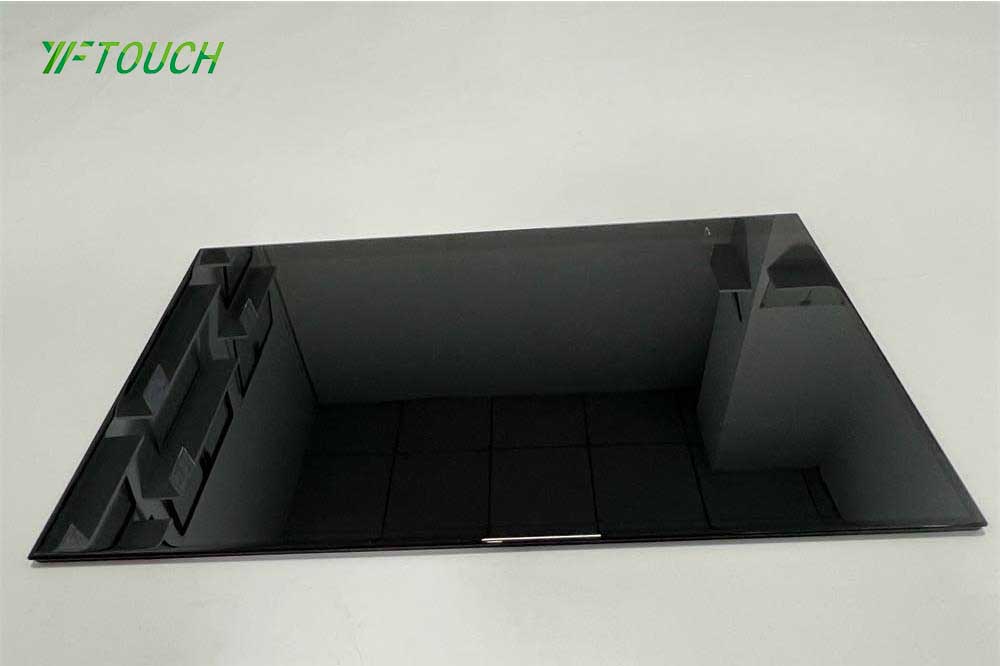

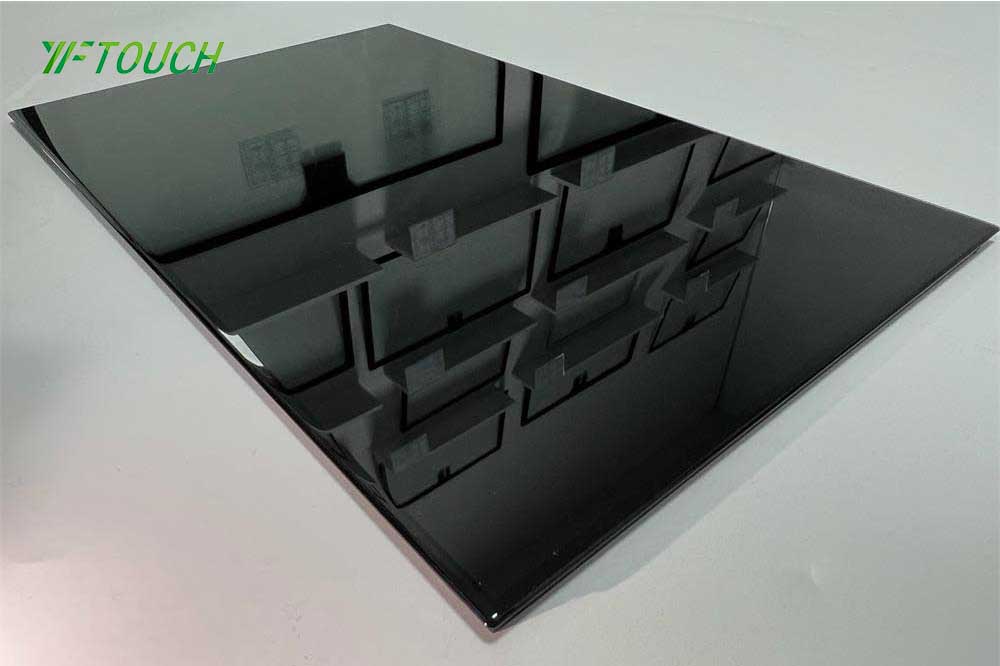

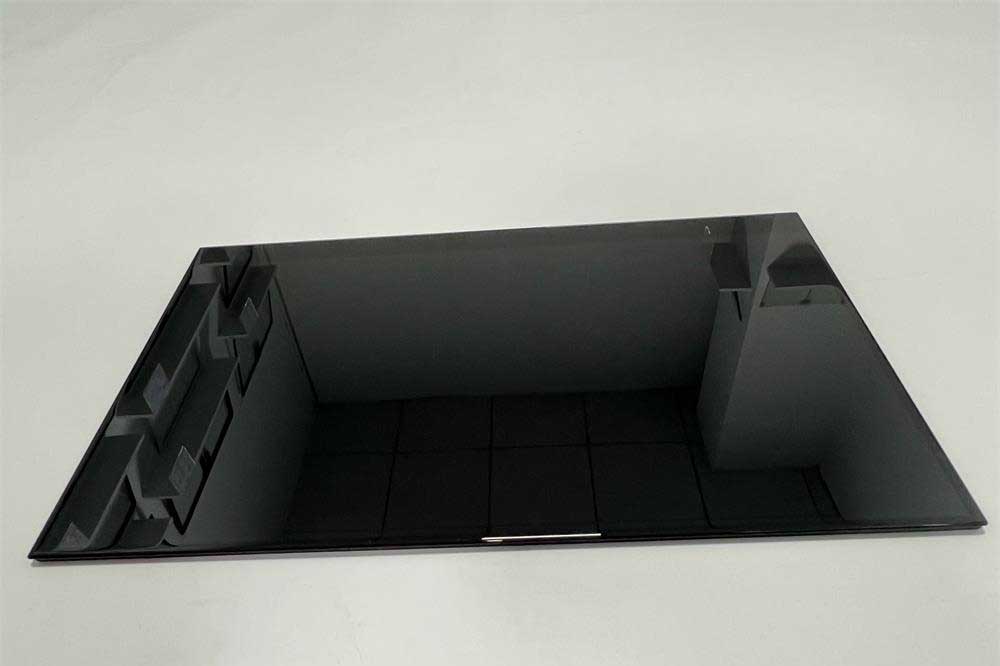

2.5D Glass Panel Water Drop Screen

2.5D glass is also called the water drop screen. The central area of the glass is flat. On the basis of the glass, the edges are CNC, polished and polished to form radians.

2.5D glass Features:

The four edges will form a downward concave arc, the four edges are more smooth, more anti-collision ability than the right edge, higher safety.

2.5D glass is ergonomic, with anti-scratch, explosion-proof, anti-fingerprint and other characteristics.

The main parameters affecting 2.5D glass are the rise and radian and glass thickness. If the glass thickness is thicker and the radian is larger, the 2.5D effect on the product edge will be more obvious.

2.5D glass thickness:

generally 1.1mm, 2mm, 3mm, 4mm.

Product Specification
Mode! Number	2.5D Cover Glass
material	CSG、panda、AGC、Corning、NEG、XFX
Transmittance	≥ 89%
Radian	2.5D
Material	Tempered Glass, High glass Aluminum
Thickness	1.1mm 2mm 3mm 4mm 5mm 6mm
Thickness tolerance	±0.2mm
Tempering	Thermal Tempering/Chemical Strengthening
Mos hardness	6H
Color	Black,White,Transparent,colors optional
Application	high-end smartphones and table border Pcs, wearable devices, instrument panels and industrial computer panel protection glass.
Hardware customization	Color, size, thickness, AF/AR/AG,2.5D,3D,Profiled/perforated

Product Application

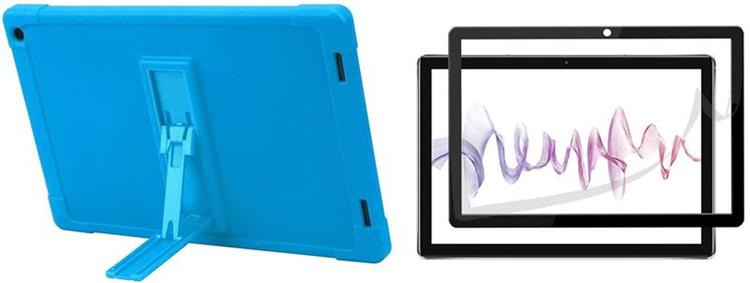

2.5d glass application scenarios 1

2.5D glass is mainly used in tablet computer glass cover plate, vehicle products and other fields.
